Description

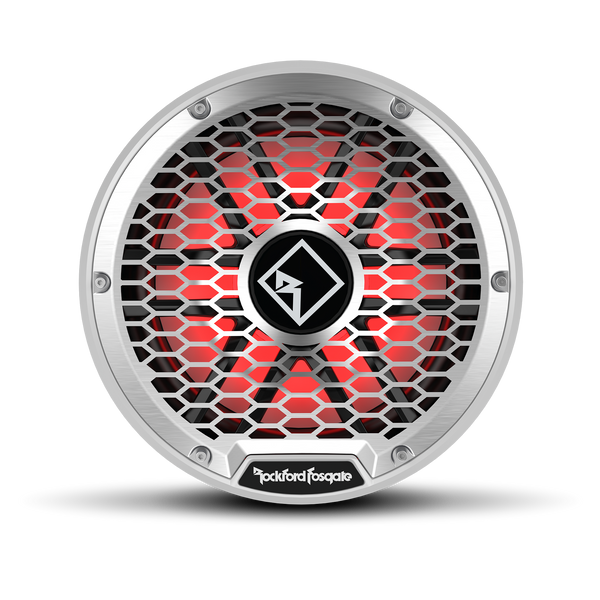

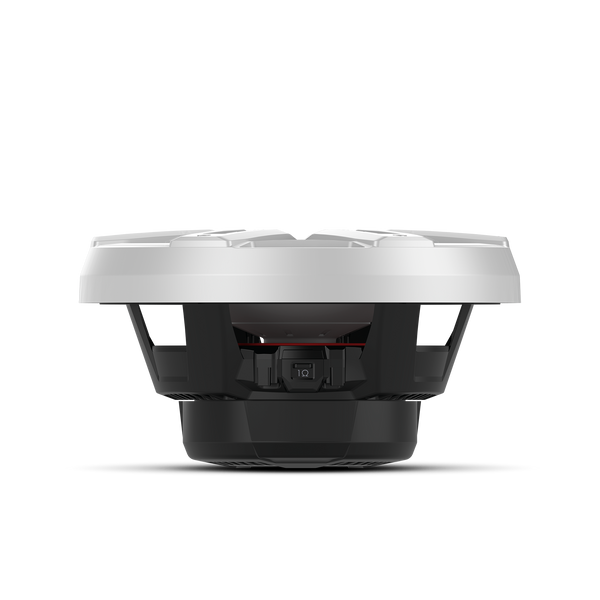

Rockford Fosgate M2 12" DVC Color Optix™ Sealed Enclosure Marine Subwoofer
The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is designed to perform in small sealed designs when there is very little space for an enclosure.
Features
- 2-Year Warranty
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Klippel Verified certification program delivers the best possible loudspeakers
- Element Ready™ design protects lighting from exposure
- Bright, wide-angle LEDs provide rich, reliable illumination
- IPX6 Water Intrusion Rated
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof

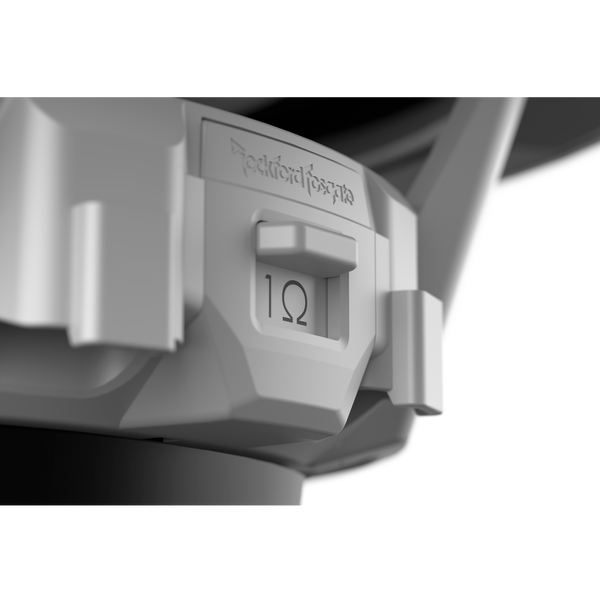

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Optimized for small sealed enclosures when there is very little space for an enclosure
- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
Specifications
| Specification | 2-Ohm Model | 4-Ohm Model |
|---|---|---|
| Size | 12" | 12" |
| Nominal Impedance (Ohms) | 1-Ohm or 4-Ohm Switchable | 2-Ohm or 8-Ohm Switchable |
| Power Handling (Watts RMS) | 400 Watts RMS 1,600 Watts PEAK |
400 Watts RMS 1,600 Watts PEAK |
| Voice Coil Type | Dual Voice Coil | Dual Voice Coil |
| Voice Coil Diameter | 1.95" (49.53 mm) | 1.95" (49.53 mm) |
| Magnet Weight (oz) | 61.09 oz. (1.7 Kg) | 61.09 oz. (1.7 Kg) |
| Frequency Response (Hz) | 20 Hz - 750 Hz | 20 Hz - 750 Hz |
| Fs (Hz) | 32 | 32 |
| Re (Ohms) | 3.3 | 6.5 |
| Le (mH) | 3.43 | 3.43 |
| Sd (cm2) | 539 | 539 |
| Qms | 4.437 | 4.26 |
| Qes | 0.91 | 1.08 |
| Qts | 0.76 | 0.85 |
| Vas | 72 | 7 |
| SPL (dB @ 1w/1m) | 88 | 88 |
| SPL (dB @ 2.8v) | 89 | 89 |
| Xmax (mm) | 15 | 15 |
| Woofer Displacement | 0.121 (3.43 Liters) | 0.121 (3.43 Liters) |
| Speaker Connector | 2-pin Deutsch™ and 1/8" Spade | 2-pin Deutsch™ and 1/8" Spade |
| Sealed Box Volume (Vb) | 0.75 (21 Liters) | 0.75 (21 Liters) |
| Cutout Diameter | 11” (279.4 mm) | 11” (279.4 mm) |
| Mounting Depth | 4.87" (123.8 mm) | 4.87" (123.8 mm) |
| Shipping Weight | 10.64 Lbs. (4.83 Kg.) | 10.64 Lbs. (4.83 Kg.) |
