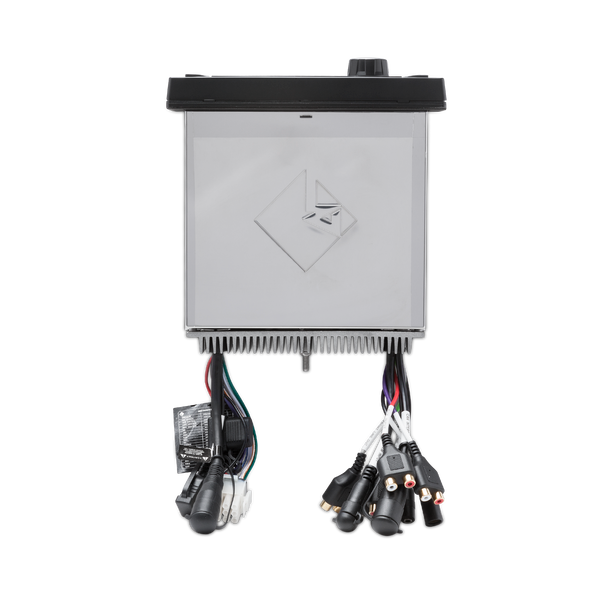

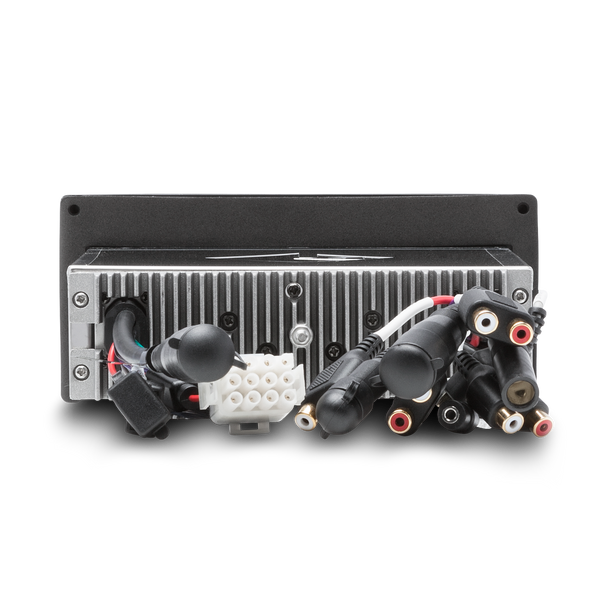

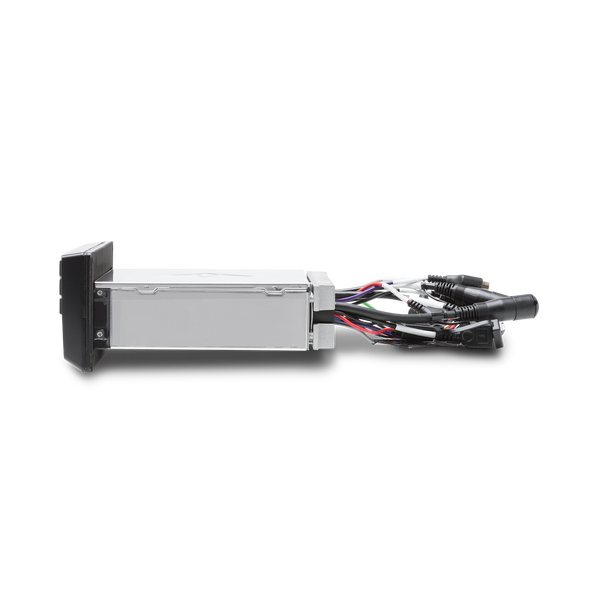

Rockford Fosgate Marine AM/FM/WB Multi-Zone Digital Media Receiver 2.7" Display w/ CAN-bus
The PMX-5CAN digital media receiver is designed for marine and motorsports systems.
The PMX-5CAN features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such as SiriusXM and Pandora capabilities, Bluetooth audio steaming with album art support for Apple and Android products and true 2 zone/2 source control, this unit becomes a true command center of any system.
Output flexibility comes a 4x50W @ 2ohm internal amplifier or dual zone output RCA's allowing the addition of after-market amplifiers for more power and output. Add in the EEPROM memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need. The PMX-5CAN also features CAN-bus functionality for connection to NMEA 2000 systems using PMX-CAN adaptor (see Accessories tab.)
Features
- 2-Year Warranty
- Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility
- *Antenna not included
- Zone Control: 2 Zone / 2 Source (F/R/S + F)
- ISO8846/SAE J1171 Ignition Protection Certified
- Stainless Steel Rear Chassis
- Steering Wheel Control Interface Compatible
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Multi-region radio frequencies
- Low Voltage Warning Alert
- AUX and USB Inputs with USB Charging
- On Board Punch EQ Control
- Independent Subwoofer Level Control
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- IPX6 Marine Grade for prevention of water intrusion
- 7-Band Graphic EQ
- AM/FM/WB Tuner
- 2.7" full color display w/ auto dimming backlightning
- SiriusXM-Ready™
- Pandora Internet Radio
- CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
Specifications
| Operating Voltage | 10.5 V - 16 V |
|---|---|
| Compatible Remotes | PMX-1R PMX-0R (3 Remote Limit, 100 ft Total Wired Distance) |
| Fuse Rating | 15 A |
| Frequency Response | 20 Hz - 20 kHz |
| Pandora® Internet Radio (Yes/No) | Yes |
| SiriusXM-Ready® (Yes/No) | Yes Requires SXV300 |
| Device Type | Digital-Media Receiver |
| Dimensions (HxWxD) | Width 8" (20.3cm) Face Depth 1.5" (3.8cm) Mount Depth 7.1" (18.2cm) Height 3.5" (8.9cm) Chassis to Face Top 0.9" (2.3cm) Chassis to Face Bottom 0.59" (1.5cm) |
| Power Output | CEA-2006 Guidelines CEA-2006 Power Rating 25W x 4 @ 4Ω RMS 50W x 4 @ 2Ω Peak ≤1.0% THD+N |
| Speaker Impedance | 2-Ohms |
| Display Size | 2.7” Color TFT |
| AUX Input (Yes/No) | Yes |
| Apple®/Android™ Compatible (Yes/No) | Yes |
| Speaker Outputs (Yes/No) | Yes |
| Multi-Zone/Multi-Source (Yes/No) | Yes |
| FM TUNER Frequency Range | 87.9-107.9 MHz |
| USB Charging (Yes/No) | Yes |
| TUNER Number Of Presets | 18 FM / 12 AM / 6 WB |
| Clock (Yes/No) | No |
| Steering Wheel Control Ready (Yes/No) | Yes |
| FM TUNER Sensitivity | 8 dB |
| WB TUNER Frequency Range | 162.40 - 162.55 (US & Canada) |
| AM TUNER Frequency Range | 530 kHz - 1710 kHz |
| AM TUNER Usable Sensitivity | 40 dB |
| RCA Output Voltage | 4V |
| RCA Output Impedance | 500Ω |
| RCA Frequency Response | 87.5 MHz - 107.9 MHz |
| Audio Format Compatibility | MP3 WMA FLAC |
| Made for iPhone Models | iPhone XS (pending) iPhone XS Max iPhone XR (pending) iPhone X iPhone 8 iPhone 8 Plus iPhone 7 iPhone 7 Plus iPhone 6s iPhone 6s Plus iPhone 6 iPhone 6 Plus iPhone 5S iPhone 5C iPhone 5 iPhone 4 iPhone 4S Phone 3GS |
| Made for iPod Models | iPod Touch (5th generation) iPod Touch (4th generation) iPod Nano (7th generation) iPod Nano (6th generation) |
| USB Capacity | 32Gb max 999 Folders max 999 Songs max |
| Android Compatibility | Bluetooth® Only |
| USB Output Current | 1A |
| USB Version | 2.0 |
